Product
Cold-Drawn Rounds/Flats/Angles
- CategoryCold-Drawn
- MaterialsCold-drawn steel, C45, S355
- ApplicationsEngineering, Precision, Automation
- AvailabilityIn stock
Precision cold-drawn steel: rounds, flats and angles, peeled and ground. Ideal for high-precision machining.
Cold-drawn steel is the ideal solution for mechanical applications requiring tight dimensional tolerances and finished surfaces. Our range includes rounds, flats and angles in peeled and ground versions.
Available in C45, S355 and quenched-and-tempered grades, cold-drawn products are ideal for manufacturing mechanical components, shafts, pins and precision parts. Cutting to size on schedule to streamline your production.
Available types
Click a type to view the complete technical table.

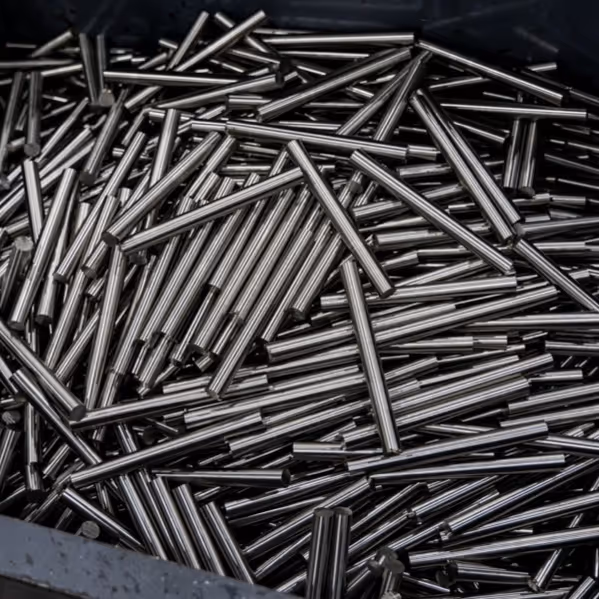

- Cold-drawn roundsPrecision cold-drawn rounds+
Diameter
mmWeight
Kg/m5 0,154 6 0,222 7 0,302 8 0,395 9 0,499 10 0,617 11 0,746 12 0,888 13 1,04 14 1,21 15 1,39 16 1,58 17 1,78 18 2,00 19 2,23 20 2,47 21 2,72 22 2,98 23 3,26 24 3,55 25 3,85 26 4,17 27 4,49 28 4,83 30 5,55 32 6,31 33 6,71 34 7,13 35 7,55 36 7,99 37 8,44 38 8,90 40 9,86 42 10,90 45 12,50 48 14,20 50 15,40 52 16,70 53 17,30 55 18,70 58 20,70 60 22,20 63 24,50 65 26,00 68 28,50 70 30,20 73 32,90 75 34,70 78 37,50 80 39,50 83 42,50 85 44,50 88 47,70 90 49,90 95 55,60 100 61,60 105 68,00 110 74,60 115 81,50 120 88,80 125 96,30 130 104 135 112 140 121 145 130 150 139 155 148 160 158 170 178 180 200 190 223 200 247 210 272 220 289 230 326 240 355 250 385 260 385 270 450 280 483 290 518 300 555 - Cold-drawn flatsCold-drawn flats with tight tolerances+
DESIGNATION mm WEIGHT Kg/m 3 4 5 6 8 10 12 15 18 20 25 30 35 40 50 60 80 10 0,236 0,314 0,393 0,471 — — — — — — — — — — — — — 12 0,283 0,377 0,471 0,565 0,754 — — — — — — — — — — — — 14 0,330 0,440 0,550 0,659 0,879 — — — — — — — — — — — — 15 0,351 0,468 0,585 0,702 0,936 1,170 — — — — — — — — — — — 16 0,377 0,502 0,628 0,754 1,000 1,260 — — — — — — — — — — — 18 0,424 0,565 0,707 0,848 1,130 1,410 — — — — — — — — — — — 20 0,471 0,628 0,785 0,942 1,260 1,570 1,880 2,360 — — — — — — — — — 25 0,589 0,785 0,981 1,180 1,570 1,962 2,360 2,940 — — — — — — — — — 30 0,707 0,942 1,180 1,410 1,880 2,360 2,830 3,530 4,239 4,710 — — — — — — — 35 0,824 1,100 1,370 1,650 2,200 2,750 3,300 4,120 4,945 5,500 6,870 — — — — — — 40 0,942 1,260 1,570 1,880 2,510 3,140 3,770 4,710 5,652 6,280 7,850 9,420 — — — — — 45 1,06 — 1,77 2,12 2,83 3,53 4,24 5,30 6,36 7,07 8,83 10,60 — — — — — 50 1,18 1,57 1,96 2,36 3,14 3,93 4,71 5,89 7,06 7,85 9,81 11,80 13,74 15,70 — — — 60 1,41 1,88 2,36 2,83 3,77 4,71 5,65 7,07 8,48 9,42 11,80 14,10 — 18,80 23,60 — — 70 1,65 2,20 2,75 3,30 4,40 5,50 6,59 8,24 9,89 11,00 13,70 16,50 — 22,00 27,50 33,00 — 80 1,88 2,51 3,14 3,77 5,02 6,28 7,54 9,42 11,30 12,60 15,70 18,80 — 25,10 31,40 37,70 — 90 2,12 2,83 3,53 4,24 5,65 7,07 8,48 10,60 12,72 14,10 17,70 21,20 — 28,30 35,30 42,40 — 100 2,35 3,14 3,93 4,71 6,28 7,85 9,42 11,80 14,13 15,70 19,60 23,60 — 31,40 39,25 47,10 — 110 — — — 5,18 6,91 8,64 10,40 13,00 — 17,30 21,60 25,90 — 34,50 43,20 51,80 — 120 — 3,77 4,71 5,65 7,54 9,42 11,30 14,10 — 18,80 23,60 28,30 — 37,70 47,10 56,50 — 130 — — — 6,12 8,16 10,20 12,20 15,30 — 20,40 25,50 30,60 — 40,80 51,00 61,20 — 140 — — 5,50 6,59 8,79 11,00 13,20 16,50 — 22,00 27,50 33,00 — 44,00 55,00 66,00 — 150 — 4,71 5,89 7,06 9,42 11,80 14,10 17,70 — 23,60 29,40 35,30 — 47,10 58,90 70,60 — 160 — — 6,28 7,54 10,0 12,6 15,1 18,8 — 25,1 31,4 37,7 44,0 50,2 62,8 75,40 100,50 180 — — 7,06 8,48 11,3 14,1 17,0 21,2 — 28,3 35,3 42,4 49,5 56,5 70,65 84,80 113,04 200 — — 7,85 9,42 12,60 15,7 18,8 23,6 — 31,4 39,2 47,1 55,0 62,8 78,50 94,20 125,60 220 — — — — — 17,3 20,7 25,9 — 34,5 43,2 51,8 60,4 69,1 — — — 250 — — — — 15,7 19,6 23,6 29,4 — 39,2 49,1 58,9 68,7 78,5 98,12 — — 280 — — — — — 22,0 26,4 33,0 — 44,0 55,0 65,9 76,9 87,9 — — — 300 — — — — — 23,6 28,3 35,3 — 47,1 58,9 70,6 82,4 94,2 117,75 — — 320 — — — — — 25,1 30,1 37,7 — 50,2 62,8 75,4 87,9 100,0 — — — 350 — — — — — — 33,0 41,2 — 55,0 68,7 82,4 — — — — — 380 — — — — — — — 44,7 — 60,0 74,6 89,5 — — — — — 400 — — — — — — — 47,2 — 62,8 78,5 94,2 — 125,60 — — — - Cold-drawn anglesPrecision cold-drawn angles+
DESIGNATION mm WEIGHT Kg/m 3 4 5 6 7 8 9 10 11 12 14 15 16 18 15 x 15 0,63 — — — — — — — — — — — — — 20 x 20 0,88 1,14 — — — — — — — — — — — — 25 x 25 1,12 1,46 1,78 — — — — — — — — — — — 30 x 30 1,36 1,78 2,18 2,58 — — — — — — — — — — 35 x 35 1,60 2,09 2,57 3,04 — — — — — — — — — — 40 x 40 1,84 2,42 2,97 3,52 — — — — — — — — — — 45 x 45 2,09 2,74 3,38 4,00 4,60 — — — — — — — — — 50 x 50 2,35 3,06 3,77 4,47 5,15 5,82 6,17 — — — — — — — 55 x 55 — 3,35 4,16 4,95 5,70 6,46 — — — — — — — — 60 x 60 — 3,70 4,57 5,42 6,24 7,09 — 8,69 — — — — — — 65 x 65 — 4,02 4,96 5,91 6,83 7,73 — — — — — — — — 70 x 70 — 4,35 5,37 6,38 7,38 8,36 9,34 10,30 11,20 — — — — — 75 x 75 — 4,72 5,78 6,87 7,94 9,03 — 11,10 — 13,10 — — — — 80 x 80 — 5,02 6,04 7,34 8,49 9,63 — 11,90 — 14,00 — — — — 90 x 90 — — 6,87 8,20 9,58 10,90 12,20 13,40 14,70 15,90 — 19,50 — — 100 x 100 — — 7,65 9,22 10,80 12,20 13,60 15,10 16,40 17,80 20,60 — 24,20 — 110 x 110 — — — — 13,00 13,50 — 16,60 — 19,70 22,80 — — — 120 x 120 — — — 11,20 13,00 14,75 — 18,20 19,30 21,60 25,00 26,60 — 31,50 130 x 130 — — — — 13,90 15,95 17,85 19,80 21,60 23,60 27,20 — 30,90 — 140 x 140 — — — — — — — — — — 29,50 31,40 — 35,30 150 x 150 — — — — — — — — — — 31,60 33,80 35,90 40,10 160 x 160 — — — — — — — — — 28,83 33,85 36,10 38,35 42,85 180 x 180 — — — — — — — — — — 38,40 41,00 43,65 48,53 200 x 200 — — — — — — — — — — — 45,80 48,67 54,45
Technical specifications
Click an entry to view the specifications for that type.
- Peeled roundsRounds with peeled surface+
- ProcessPeeling with dimensional control
- FinishPeeled surface, decarburization-free
- GradesC45, 42CrMo4, quenched and tempered
- TolerancesISO h9
- ApplicationsShafts, pins, mechanical components
- Ground roundsHigh-precision ground rounds+
- ProcessPrecision grinding
- FinishRa ≤ 0.8
- GradesC45, 42CrMo4, quenched and tempered
- TolerancesISO h7 / h8
- ApplicationsPrecision shafts, spindles, pneumatic cylinders
Services
Available processing for Cold-Drawn Rounds/Flats/Angles
Band saw cutting
Precise cutting of sections, beams, tubes and rounds with band saws. Cut-to-size processing for any length and quantity.
Service centre
Thanks to our partnerships we can fully manage your order across every service: sheet bending, sheet rolling, tube and beam rolling, hot-dip galvanising. We take care of everything!
Request information
Contact our technical office for availability, prices and cut-to-size services. Guaranteed response within 24 hours.
